Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Condition: New

Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory

Weight (KG): 300

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2021

Warranty of core components: 1 Year

Core Components: FFU, Booth

Warranty: 1 Year

Product name:: Clean booth

Purification rank:: 100~10000

Indices:: Iron/Stainless steel

Framework material:: Cold rolled steel/Aluminum/Stainless steel

Wall and ceiling material:: Anti-static PVC curtain/Half glass door

Optional pre-filter:: Available

Control box:: Cold rolled steel/Stainless steel

Foot margin:: Depends on actual need

Universal wheels:: Depends on actual need

Customized designs:: Available

Βασικές πληροφορίες

Πληρωμής & Αποστολής Όροι

Packaging Details: Export Standard Packing

Supply Ability: 20 Set/Sets per Month

Περιγραφή προϊόντων

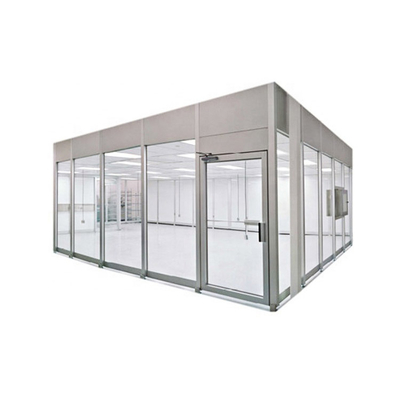

China Factory Clean/Dust-free Room Portable Clean Booth Removable With FFU Installation Customized Sizes Available

Products Description

Clean Booth

Frameworks: Epoxy powder coated steel / Stainless steel square pipe / Extruded aluminum
Wall material: Anti-static strip curtain / Anti-static grid curtain / Sliding door
Ceiling material: Stainless steel / Cold-rolled steel with powder coated / Anti-static grid curtain / Anti-static acrylic board
Clean class: ISO5/ ISO6 / ISO7

With the Fan filter unit at the top to offer the clean air

With the HEPA filter H13 99.99% for the fan filter unit FFU

With steel with powder coated frame

Or with stainless steel 304 frame

With the control box to control the wind speed, turn on /off for the clean booth/soft wall cleanroom

It can design with the wheels if need

Product information
Clean booth, also known as clean shed or clean workstation. It is quick and easy to create as a simple clean room.
Internal clean class can reach up to 100 -100,000 level. In order to reduce the cost of the structure, KLC has changed the
traditional design concept, and used mini-clean unit integrated design which is similar to the SMIF forms.
Clean booth has a variety of independent clean area, the only difference is not arm connection, but its operation in airtight
clean room. It uses independent air-conditioning and return air system, this advantage of design is flexible, interval easily, low construction costs.
Clean booth can separate between people and equipment or products effectively, also can minimize human interference and pollution, thereby enhancing the rate of qualified products.

Advantages
Economy
compared to the traditional civil style clean room, the cost is greatly reduced
Efficiency
supply clean vertical airflow, maintaining the clean class level of indoor
Convenience
a standard 10'' x 10''clean both just take a few hours to install, and easy disassemble
Flexibility
bracket type can increase the number of FFU in order to raise the clean class level from ten thousand up to one hundred.

Advanced Configuration
Use independent HEPA filter or ULPA filters
FFU blower consist of advanced clean room

Custom Design

CB-1

Configurations
1. Frameworks: powder coated steel
2. Four side: grid curtain
3. Entrance: PVC blade

CB-2

Configurations
1. Frameworks: powder coated steel
2. Four side: PVC blade
3. Entrance: PVC blade

CB-3

Configurations
1. Frameworks: powder coated steel
2. Four side: transparent acrylic glass
3. Entrance: manually open door

CB-4

Configurations
1. Frameworks: anodized aluminum
2. Four side: transparent acrylic glass
3. Entrance: manually open door

CB-5

Configurations
1. Frameworks: stainless steel
2. Four side: transparent acrylic glass
3. Entrance: air shower
4. Accessories: pass box

Product Specification

Model item			Laminar flow Clean Shed
Model item				KLC-CS1500	KLC-CS2000	KLC-CS3000	KLC-CS5000
Size(mm)			150020002400	200030002400	300040002400	500050002400
Material	Framework	Cold rolled steel /Aluminum/Stainless steel
Material		Around	Plexiglass,Soft curtain,Anti-static strip curtain
Clean Class Level			100	1000	10000	100000
HEPA filter	Size(mm)	61061069	122061069	122061069	122061069
		Efficiency(%)	99.99	99.99	99.99	99.99
		Air flow (m3/h)	4000	5040	7560	12000
Pre filter	Size(mm)	Optional
Motor Spec	Power supply	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Motor Spec		Noise(dB)	62	63	62	63

Application Electronic plant, national defense, precision instruments, food processing, pharmacy, chemical, agricultural, biological, other industrial departments and all kinds of scientific laboratory, etc.
